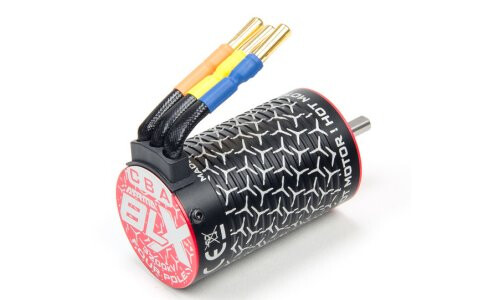

Arrma AR390214 BLX 3660kV brushless motor
Overview
The BLX 3660kV brushless motor provides lots of speed and torque, and is perfectly balanced for use with the ARRMA BLX100 ESC unit.
FEATURES:
A beautifully etched black aluminum motor can provides a premium look, while a 4 pole internal configuration keeps the power supply smooth and consistent - Gold bullet connectors ensure fast and easy wire removal when you need to clean your vehicle - The aluminum motor can provides increased heat dissipation via the finned body section
SPECIFICATION
Motor Type Brushless
Motor kV (# of Turns for brushed) 3200V
Poles 4 Pole
Motor Length 60mm / 2.36"
Diameter 30mm / 1.18"
Shaft Length 18.5mm / 0.73"
Shaft Diameter 5mm / 0.2"
Motor Mounting Hole Diameter M3
Motor Cable Length (Including Connector) 45mm / 1.77"
Motor Connector Diameter 4mm / 0.16"
Motor Weight 289g / 9.18 oz
INCLUDES:
1 x BLX 3660kV Brushless Motor
REQUIRES:
Recommended for use with AR390069 - BLX100 BRUSHLESS 3S ESC
Brand:
Arrma
Barcode:
5052127030144
