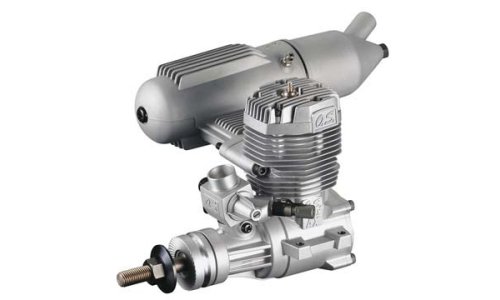

O.S. 65AX ABL Aircraft Engine with the E4010A Muffler OSM16521
SPECIFICATIONS:
- Displacement: 0.65cu in (10.63cc)
- Bore: 0.95" (24mm)
- Stroke: 0.93" (23.5mm)
- Weight with Muffler: 23oz (653g)
- Practical RPM Range: 2,500-12,000
- Output: 1.75 hp @ 16,000 RPM
- Crankshaft thread size: 5/16-24
- Distance from center of engine to drive hub: 2-5/8" (65mm)
- Distance between exhaust bolt mounting holes 42mm
- Distance from center of engine to end of crankshaft: 4" (102mm)
- Distance/crankshaft center to muffler exhaust outlet:1-1/2" (38mm)
- Height from crankcase bottom to top of cylinder head 3-7/8" (98mm)
- Height/crankshaft center to top of cylinder head: 3-1/16" (77mm)
- Width including mounting tabs: 2-3/8" (60mm)
- Width not including mounting tabs: 1-9/16" (39mm)
- Width between mounting holes same side: 15/16" (25mm)
- Width between mounting holes opposite side: 2.04" (52mm
- Propeller: 12x6, 13x6-7 or 14x6
