Phoenix Model (PH118) PC-9 Sport Model For EP Or .46 - .55 Engines PHPC9-46

$489.99
PHPC9-46
Out of stock

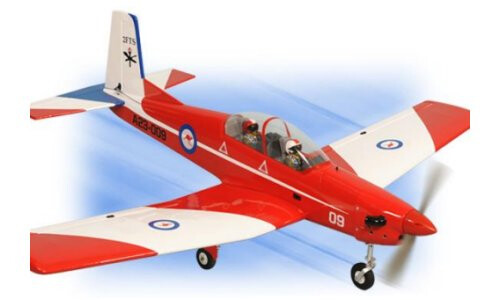

Phoenix Model (PH118) PC-9 Sport Model For EP Or .46 - .55 Engines PHPC9-46


Introducing
A great airplane! Its semi symmetrical airfoil and long tail moment deliver precise aerobatic performance for experienced pilots, yet the PC 9's superb stability make it an ideal first low–wing model. This ARF has been designed to keep building time to a minimum; it's 90% pre-built, with premium covering. The better you get the more fun it gives you!
Technical data
- Wingspan: 1490mm (58.6in)
- Length: 1270mm (50in)
- Flying weight: 3200gr-3400gr
- Wing area: 39dm2
- Wing loading: 82g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Gear type: Retract and CNC strut gear (included)
- Spinner size: Plastic 58mm (included)
- Radio: 6 channel minimum (not included)
- Servo: 6 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 steering nose; 1 throttle; 2 servo retract futaba S3170G (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
- Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
- Gravity CG: 90-100 mm (3.5-3.9 in) Back from the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 8mm up/down, 10% expo; High: 10mm up/down, 10% expo
- Control throw Elevators: Low: 8mm up/down, 12% expo; High: 10mm up/down, 12% expo
- Control throw Rudder: Low: 25mm right/left, 15% expo; High: 40mm right/left, 15% expo
- Experience level: Intermediate
- Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .46-.55 (not included)
- Lipo cell: 4-6 cells / 4000 – 5500mAh (not included)
- Esc: 50-80A (not included)
Feature
- Designed for compatibility with both GP and EP flight
- Covered in genuine ORACOVER®
- Removable top hatch for easy change lipo battery and set up radio
- Strong Light Weight Construction
- Superb flying characteristics, plus an accurate scale outline
- High-quality hardware package included
Brand:
Phoenix Model
