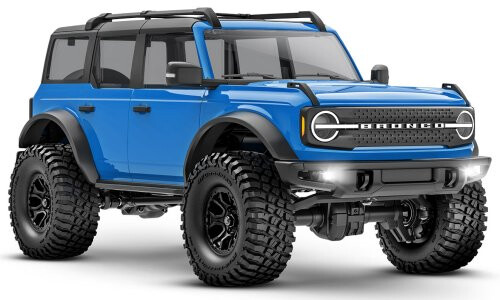

Traxxas 1/18 TRX-4M Ford Bronco Crawler Blue Edition 97074-1
Overview:
BIG FUN AND ADVENTURE IN A SMALLER TRX-4 Ford Bronco Crawler
Introducing TRX-4M, a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a 1/18 platform. TRX-4M bridges the gap between the small crawler scene and 1/10 scale quality and performance. Oil-filled shocks, steel frame rails, and a smooth running drivetrain give it true outdoor capability over rocks and through grass and streams. The tight turning radius and precise throttle control give it fantastic indoor maneuverability.
Specifications:
Length: 10.3 inches (262mm)
Front Track: 4.9 inches (124mm)
Rear Track: 4.9 inches (124mm)
Ground Clearance: 1.12 inches (29mm)
Weight (w/o battery): 1.03lbs (468g)
Height: 4.6 inches (117mm)
Wheelbase: 6.10 inches (155mm)
Approach Angle: 54°
Breakover Angle: 45°
Departure Angle: 48°
Shock Length (front and rear): 2.0 inches (51mm)
Hex Size: 7mm
Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
Tires (front and rear): 2.2 x 1.0 inches (57 x 25.4mm)
Electronic Control Module: ECM-2.5™ (Combo ESC, Receiver, Lighting Control*)
Motor (electric): Titan® 180 87T
Differential Type: Fully Locked; 2:1 Axle Ratio
Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 4WD
Steering: Axle-Mounted Servo
Radio System: TQ™ 2.4GHz 2-Channel Transmitter
Servo: #2065T Heavy-Duty Waterproof
Skill Level: 1
Battery Tray: 50.5mm L X 31mm W
*Requires accessory Pro Scale LED Light Kit, sold separately
Brand:
Traxxas
Barcode:
020334971142
Scale:
1/18
