Tamiya RC 58568A Neo Scorcher (TT-02B) No ESC

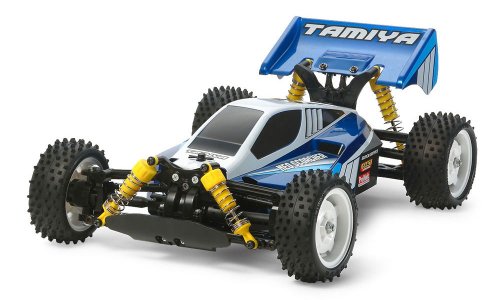

TAMIYA NEO SCORCHER (TT-02B)



Burn through the off-road circuits!

The Scorcher, a popular and speedy 4WD racing buggy from the late-1980s Tamiya line-up, is back, with a new name and updated body! Made from durable polycarbonate and featuring a stylish large rear wing, the body design drew heavily upon the original Scorcher for inspiration, and can be decorated with the minimum of fuss, thanks to the large stickers included. It runs on the easy-assembly shaft-driven 4WD TT-02B, and marries the chassis' controllability with square spike tires for superior grip on rough surfaces. This off-road veteran is back with new features to scorch your rivals!



Shaft-Driven 4WD and Superior Handling from the TT-02B

The shaft-driven 4WD TT-02B buggy chassis uses a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus CVA shock units, giving the car assured handling, while L/R suspension arms and uprights are identical to facilitate hassle-free assembly. F/R gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening 4 screws, making maintenance a breeze. 4 different gear ratios can be applied with the use of 3 separately-sold types of pinion gears, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.



4-wheel independent double wishbone suspension features long arms and CVA shock units.

Reliable shaft-driven 4WD uses sealed F/R gearboxes for stress-free maintenance.

Included receiver case keeps dust out.

Length: 380mm, Width: 250mm, Height: 145mm

Wheelbase: 266mm, Tread: 217mm (Front), 208mm (Rear), Tire Width/Diameter: 32/82mm (Front), 41/82mm (Rear)

Bathtub-type Frame

Shaft-Driven 4WD

Front/Rear 4-Bevel Resin Differentials

3-Piece Steering Tie-Rod

4-Wheel Double Wishbone Suspension

Front/Rear CVA Oil Dampers

Gear Ratio 10.71:1 (using kit-included pinion gear)

Type 540 Motor
