Tamiya 57984 1/10 4WD TT-02 Chassis Set (Factory Finished)

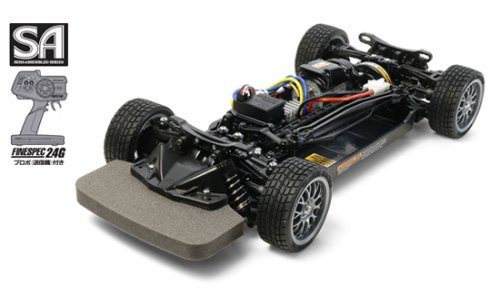

This semi-assembled version of the shaft-driven 4WD TT-02 chassis features pre-installed R/C equipment and assembly already completed, meaning that all you need to do is attach the body of your choice, get a battery pack and charger, and start driving! The TT-02 employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability in conjunction with the 4-wheel double wishbone suspension. Easy-to-maintain front and rear sealed gearboxes are equipped with differentials, and the excellent performance of the TT-02 is matched by its looks, with brake disc-shaped wheel hubs giving the air of a real car and a front bumper support designed to look like that on a racing car. Silver-colored mesh wheels are fitted with radial tires with a realistic tread pattern. The TT-02 is a versatile chassis which requires only simple refitting of existing parts to offer 2 different wheelbase, tread and ground clearance settings, and it also features a motor mount which enables the selection of 10 different gear ratios. The included ESC (Electronic Speed Controller) allows both forward and reverse driving.



Featuring 2.4GHz R/C System This kit uses a 2.4GHz R/C system which eliminates the need for crystals, and utilizes a wheel-trigger type transmitter perfect for driving R/C cars. The transmitter is factory-paired with the enclosed receiver, ensuring that they only communicate with each other and there are no crossed signals resulting in loss of model control. Removable grip and trigger covers are also included to enable comfortable use by those with smaller hands.



●Length: 407mm, Width: 184mm ●Wheelbase: 257mm●Tire Width/Diameter (Front and Rear): 27/67mm

Bathtub-type Frame ●Shaft-Driven 4WD ●Front/Rear 4-Bevel Resin Differentials ●3-Piece Steering Tie-Rod ●4-Wheel Double Wishbone Suspension ●Front/Rear Friction Dampers ●Gear Ratio = 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion) ●Type 540 Motor ●Electronic Speed Controller is pre-installed ●Features carry case-type package



●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter



●Tamiya TT-02, TT-01, and TT-01 Type-E bodies
