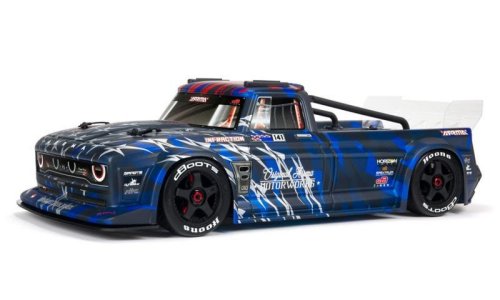

Arrma ARA7615V2T1 Infraction BLX RC Road Truck Blue
Overview
Take high-speed street bashing performance to another level with the 1/7 scale ARRMA® INFRACTION™ 6S BLX 4WD RTR. Capable of 80+ MPH speeds out of the box over on-road, dirt, and oval tracks, it now includes a handbrake and Spektrum® Smart electronics.
Features
- Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)
Ergonomic steering wheel for precise control in all conditions
On-the-fly adjustable AVC® gain for personalized handling set-up
Convenient voltage level indicator for Spektrum® Smart batteries
Convenient handbrake button for on-demand drifting
- Download the free Spektrum® Dashboard™ app for iOS or Android to:
Connect your mobile device wirelessly via Bluetooth to your DX3™ transmitter*
View real-time telemetry data including ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM
* Requires Bluetooth module SPM6741, available separately
- ARRMA® ADS-15M Steering Servo
Waterproof*
Metal-geared
195 oz-in (15kg-cm) torque @ 6V
- Spektrum® SPMS650 Brake Servo
Waterproof*
Plastic-geared
83 oz-in (6kg-cm) torque @ 6V
- Spektrum® Firma™ 150A Smart ESC
Waterproof*
Handles 4S/6S power
IC5® connectors (EC5™ compatible)
- Spektrum® Firma™ 4074 2050Kv Brushless Motor with Safe-D pinion gears
- New electronics module
Improved range
- New handbrake feature
Mechanical rear brakes for stunts and drifting
Convenient DX3™ transmitter handbrake switch
Chassis handbrake module with vented disc brake
- Fresh street body look with matte gloss effect designs
- Tunable wing for customizing the downforce
- Full-width front splitter balances downforce distribution
- Rear diffuser increases downforce and grip for cornering faster and with confidence
- Adjustable front and rear body mounts
- 3mm Plate, 6061-T6 anodized aluminium chassis
- Centre brace for maximum durability
- Heavy-duty drivetrain with durable steel driveshafts throughout
- High-speed centre driveshaft support
- Rubber-shielded bearings
- All-metal diff outdrives and gearbox internals
- Updated internal gears with new tooth profile for increased strength
- Lower internal gear ratio to reduce the centre line transmission RPM, reducing centre driveshaft resonance and increasing drivetrain durability
- Oil-filled, adjustable, anodized aluminium shocks
- Black-anodized aluminium front and rear shock towers
- Waterproof* receiver box
- Large battery trays
- 5-spoke wheels
- Durable wheel hubs
- dBoots® Hoons™ all-road tires
* For details on waterproof standards, please refer to the product instruction manuals
What's in the box?
- ARRMA® INFRACTION™ RETRO MOD STREET BASH 1/7 6S BLX 4WD RTR
- Spektrum® DX3™ DSMR® Radio with SR6110AT Receiver
- Spektrum® Firma™ 150A Smart ESC
- Spektrum® Firma™ 4074 2050Kv Brushless Motor
- ARRMA® ADS-15M Waterproof Steering Servo
- Spektrum® SPMS650 Brake Servo
What you need
- (2) 2S or 3S LiPo batteries
- Compatible charger
- Safe LiPo charging bag
- (4) AA transmitter batteries
Brand:
Arrma
MPN:
ARA7615V2T1
Barcode:
5052127037303
Scale:
1/7
